NATURAL GAS GENSET
4000 kw

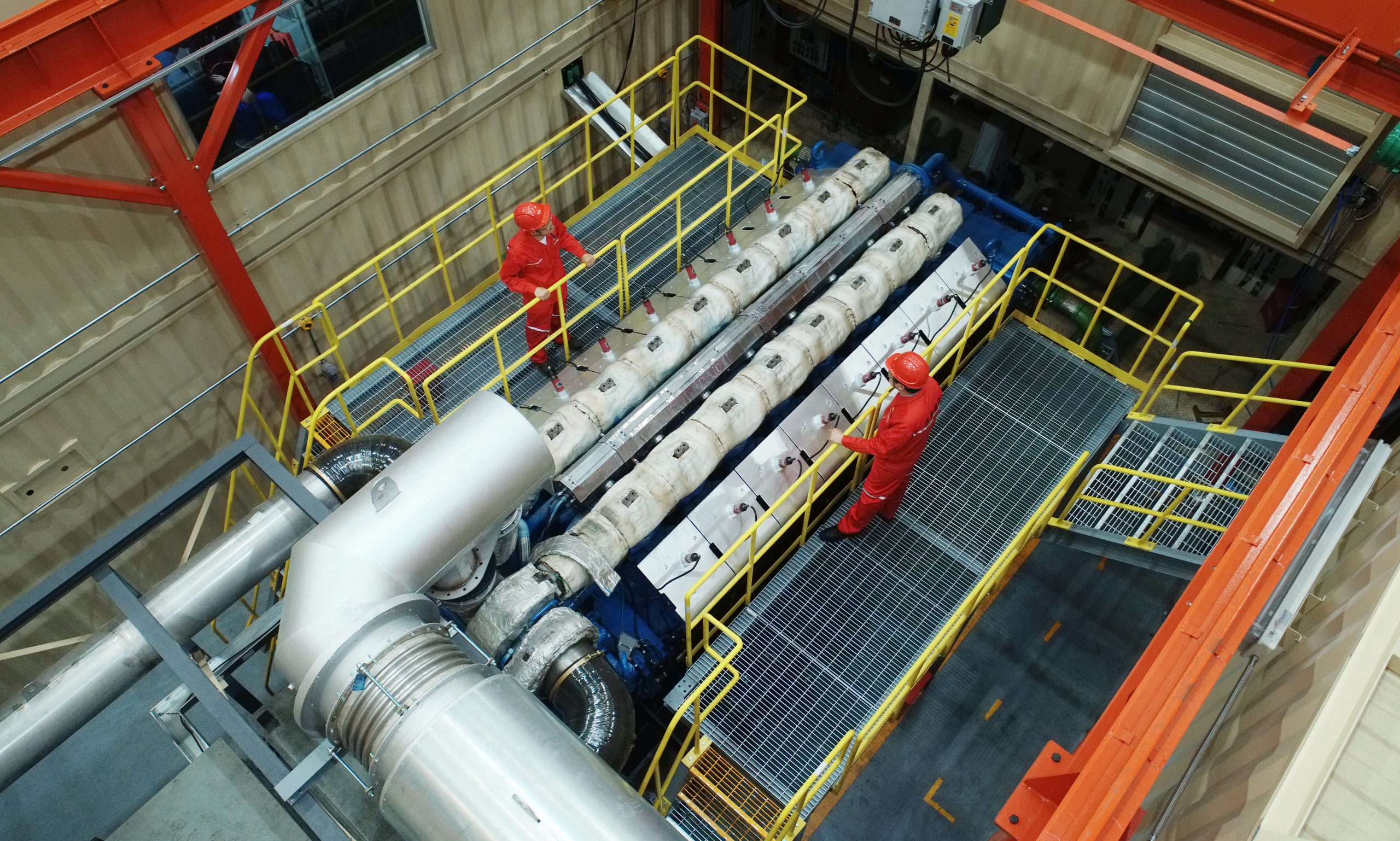

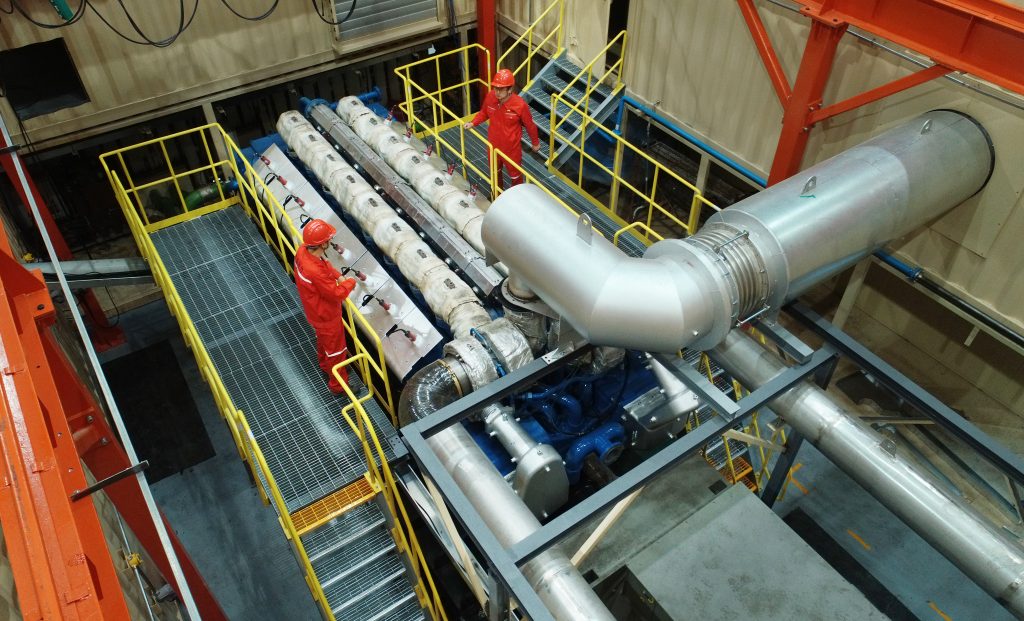

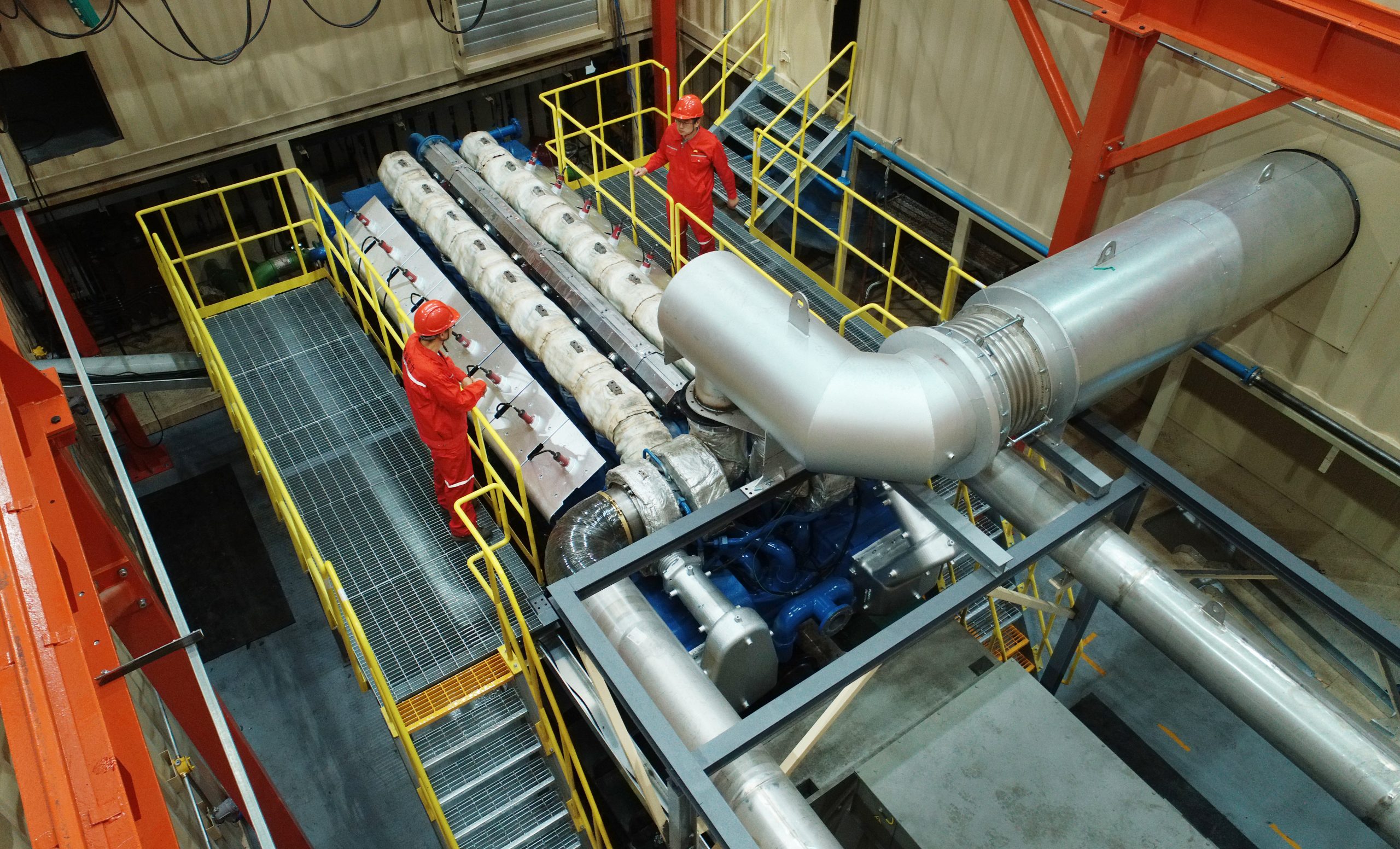

4000kW Natural Gas Generator
High-capacity natural gas power generation system for large-scale industrial applications.
RATED POWER
4000 kw
TECHNICAL DATA
Technical Specifications
Detailed technical specifications for the generator, gas engine and alternator.
Generator
Electrical Specifications
Rated Power
4000kW
Continuous Power(COP)
3600kW@25℃
Rated Frequency
50Hz
Rated Power Factor
0.8(Lag)
Rated Voltage
10500V
Rated Speed
1000r/min
Oil Consumption
≤0.6 g/kWh
Starting Mode
Air motor starter
Cooling Mode
Open type double temperature forced water cooling
Stabilized Voltage Regulation
≤±2.5%
Voltage Fluctuation
±0.5%
Instantaneous Voltage Regulation
-15%～+20%
Voltage Recovery Time
≤1.5s
Stabilized Frequency Regulation
0～5%(adjustable)
Frequency Fluctuation
0.50%
Instantaneous Frequency Regulation
-10%～+10%
Frequency Recovery Time
≤7s
Overall Dimensions
9435*2930*4175
Weight(exclude radiator)
70000KGS
Gas Engine
Engine Specifications
Fuel
Natural gas
Type
Four strokes ， V type ， multi-point gas injection ， prechamber 、 exhaust gas turbocharge ， intake intercooler ， the supercharger is arranged at the flywheel side of the engine.
No. of Cylinder & Cylinder Arrangement
16 cylinder V type
Bore*Stroke
260mm*320mm
Single cylinder displacement
17L
Rated Speed
1000r/min
Rated Power
4200kW
Inlet pressure
6-10bar
Lub-Oil Consumption
≤0.5 g/kW·h
Lubrication Method
Pressure and splash lubrication
Starting Method
Electrical starter
Direction Of Rotation
Clockwise (viewed from the drive end of the generator)

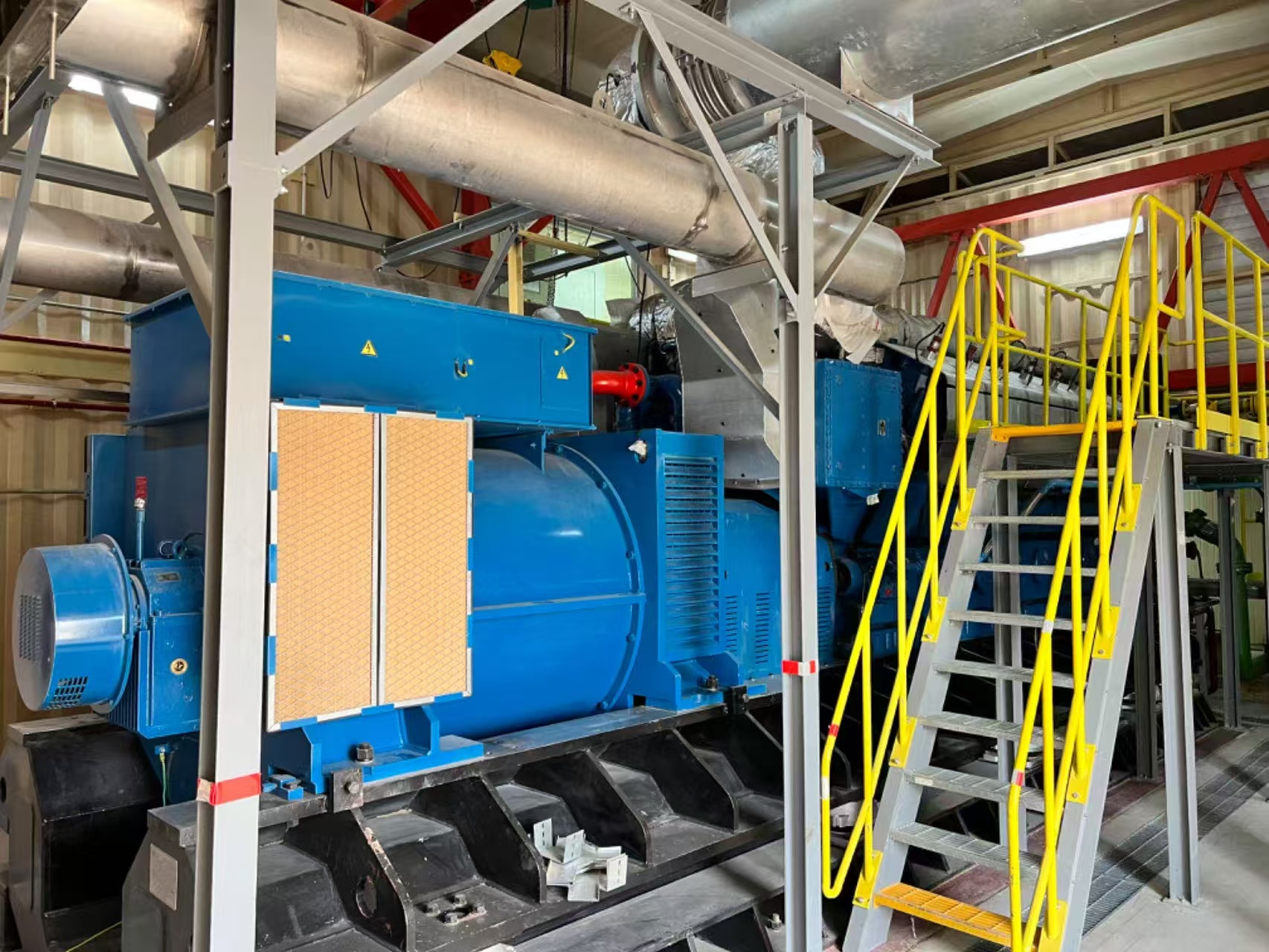

Alternator
Alternator Specifications
Rated Power
4000kW
Rated Voltage
10500V
Rated Frequency
50Hz
Power Factor
0.8(lag)
Rated Speed
1000r/min
Connection Mode
Y
Insulation Grade
H
Environment Temperature
-20℃～30℃
Altitude
≤1000m
Protection Level
IP23
Ventilation mode
Self ventilation(IC01)
Excitation mode
Permanent self-excitation and constant voltage ( AVR)
