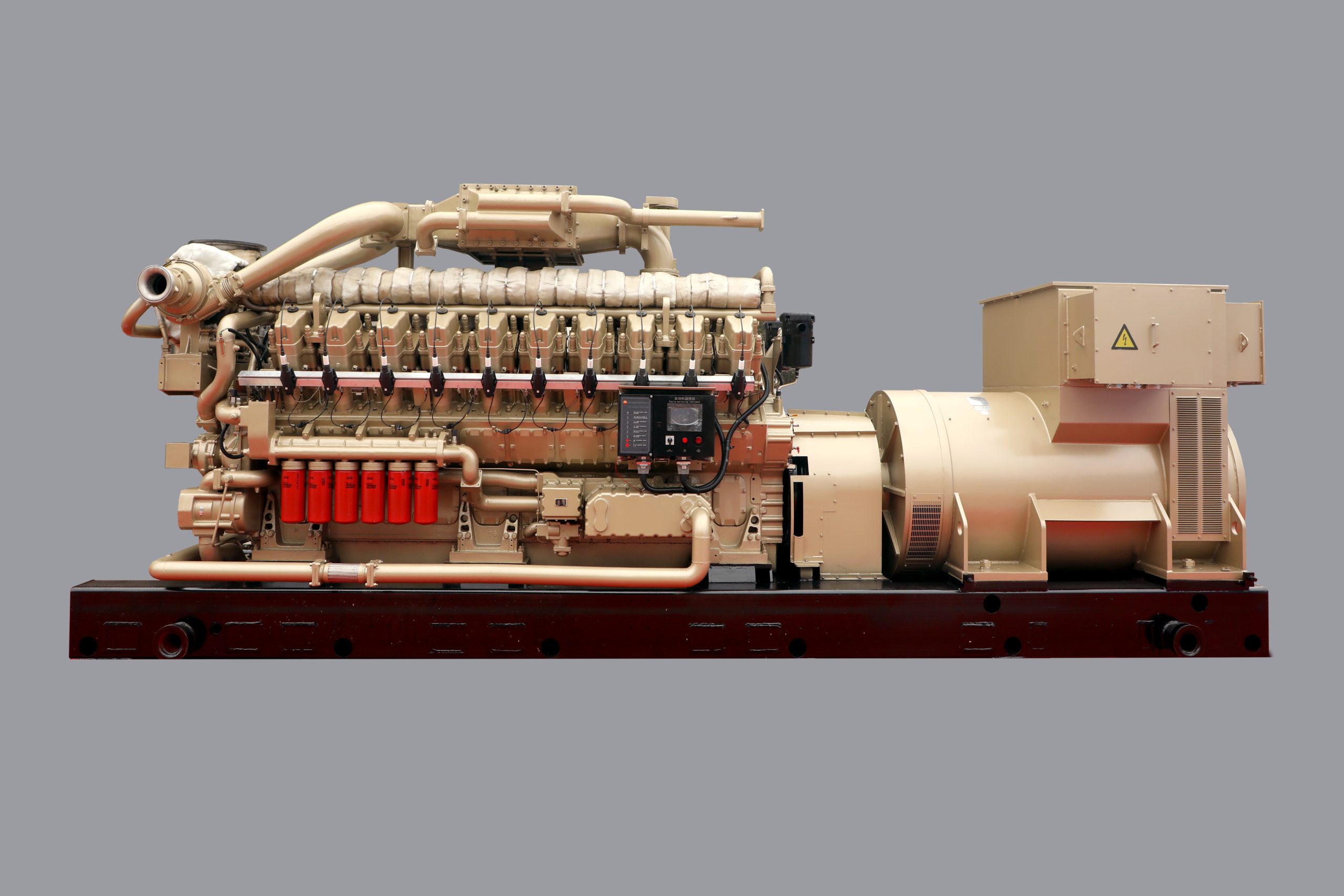

NATURAL GAS GENSET 2000

2000kW Natural Gas Generator

High-capacity natural gas power generation system engineered for large industrial facilities and utility-scale power applications.

Technical Specifications Send Enquiry

RATED POWER

2000

TECHNICAL DATA

Technical Specifications

Detailed technical specifications for the generator, gas engine and alternator.

Generator

Electrical Specifications

Rated Power 1200kW

Continuous Power(COP) 1000kW@25℃

Rated Frequency 60Hz

Rated Power Factor 0.8(Lag)

Rated Voltage 480V

Rated Speed 1200r/min

Oil Consumption ≤0.3-0.6 g/kWh

Starting Mode Electric starter

Cooling Mode Water cooling

Stabilized Voltage Regulation ≤±2.5%

Voltage Fluctuation ±1%

Instantaneous Voltage Regulation -15%～+20%

Voltage Recovery Time ≤1.5s

Stabilized Frequency Regulation 0～5%(adjustable)

Frequency Fluctuation 0.50%

Instantaneous Frequency Regulation -10%～+10%

Frequency Recovery Time ≤7s

Overall Dimensions 6000*2300*2800

Weight(exclude radiator) 17000KGS

Gas Engine

Engine Specifications

Fuel Natural gas

Type In-line, 4-stroke, spark plug ignition, water cooled, turbocharged

No. of Cylinder & Cylinder Arrangement 12 cylinder V type

Bore*Stroke 200mm*255mm

Total Displacement 96.1L

Rated Speed 1200r/min

Rated Power 1320kW

Inlet pressure 0.1-0.5bar

Lub-Oil Consumption ≤0.3-0.6 g/kW·h

Lubrication Method Pressure and splash lubrication

Starting Method Electrical starter

Direction Of Rotation Clockwise (viewed from the drive end of the generator)

Alternator

Alternator Specifications

Rated Power 1200kW

Rated Voltage 480V

Rated Frequency 60Hz

Power Factor 0.8(lag)

Rated Speed 1200r/min

Connection Mode Y

Insulation Grade H

Environment Temperature -20℃～30℃

Altitude ≤1000m

Protection Level IP23

Ventilation mode Self ventilation(IC01)

Excitation mode Permanent self-excitation and constant voltage ( AVR)

2000 NATURAL GAS GENERATOR

Need This Generator for Your Project?

Contact our technical team for generator sizing, configuration, voltage selection, gas requirements and project-specific specifications.

Request a Quote Contact Sales

Back to Natural Gas Generators
