NATURAL GAS GENSET
100 kw

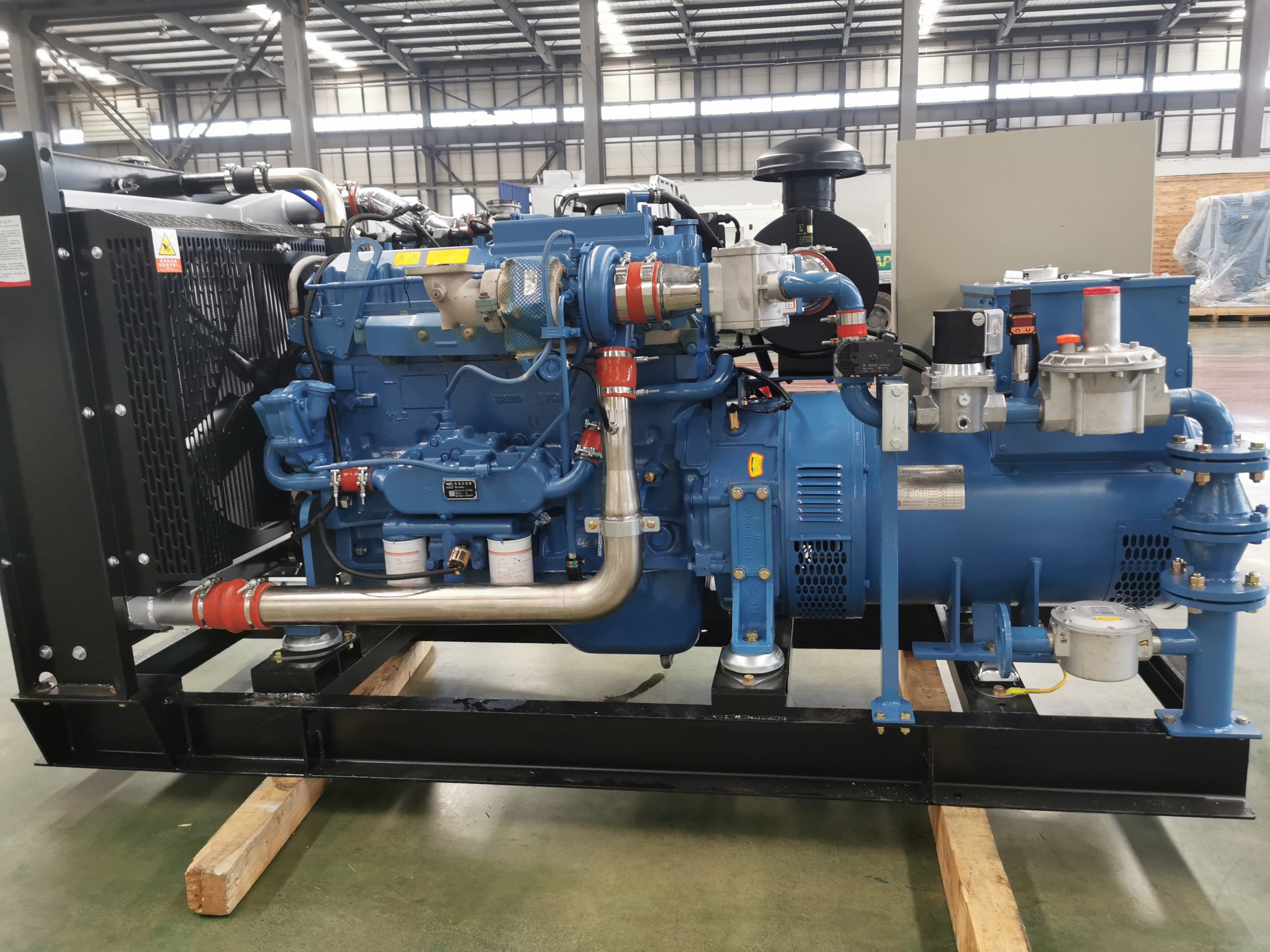

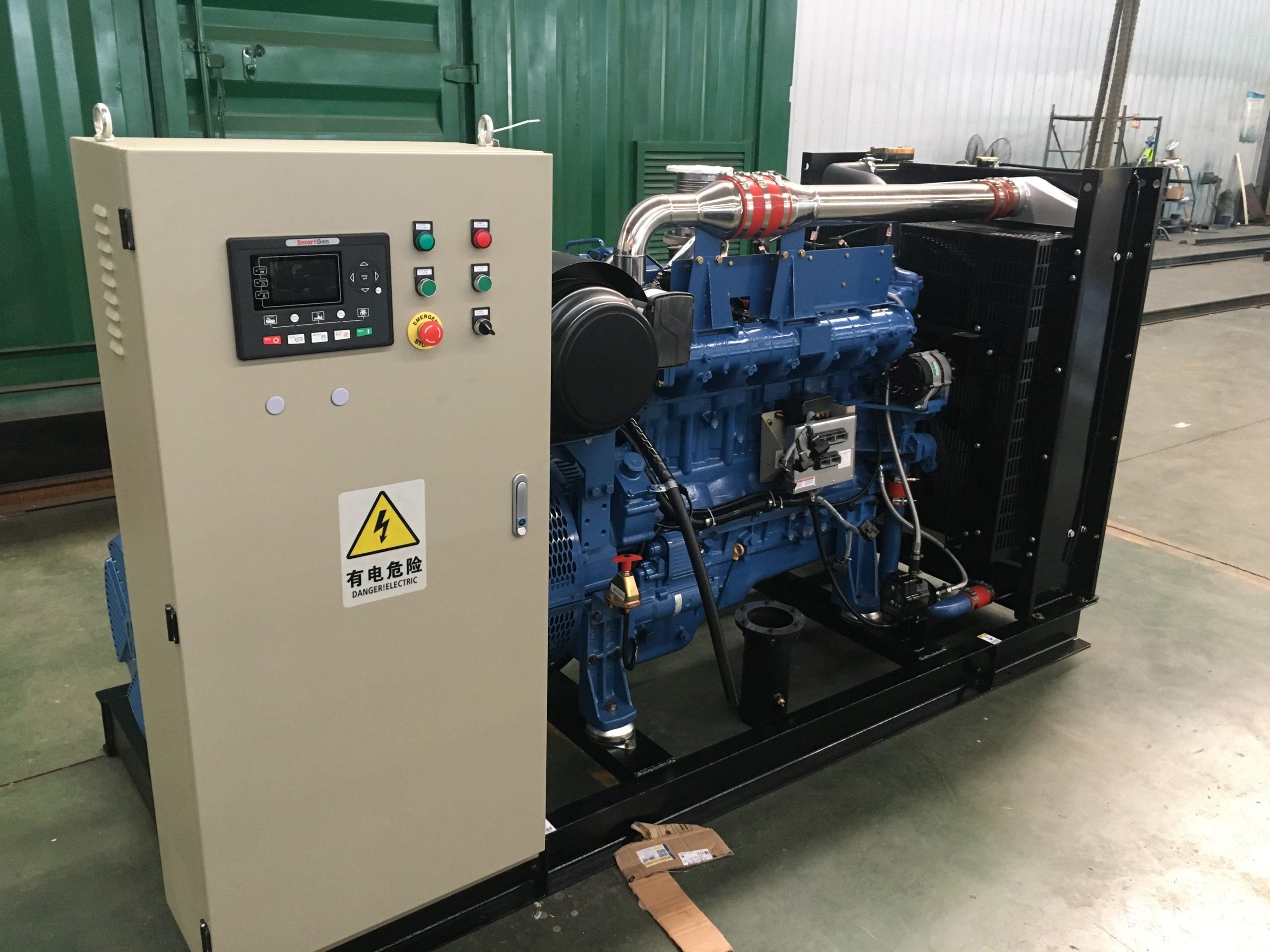

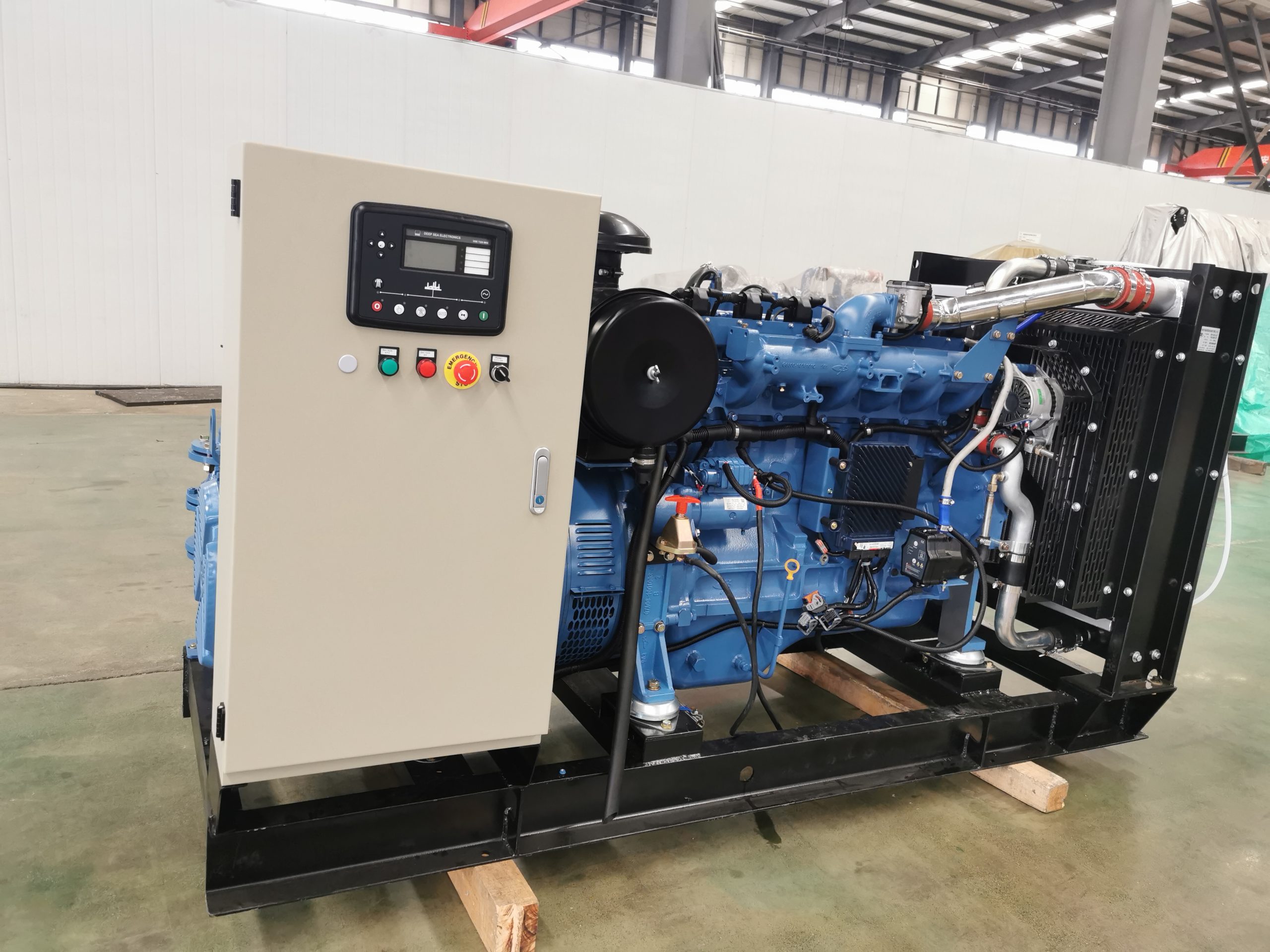

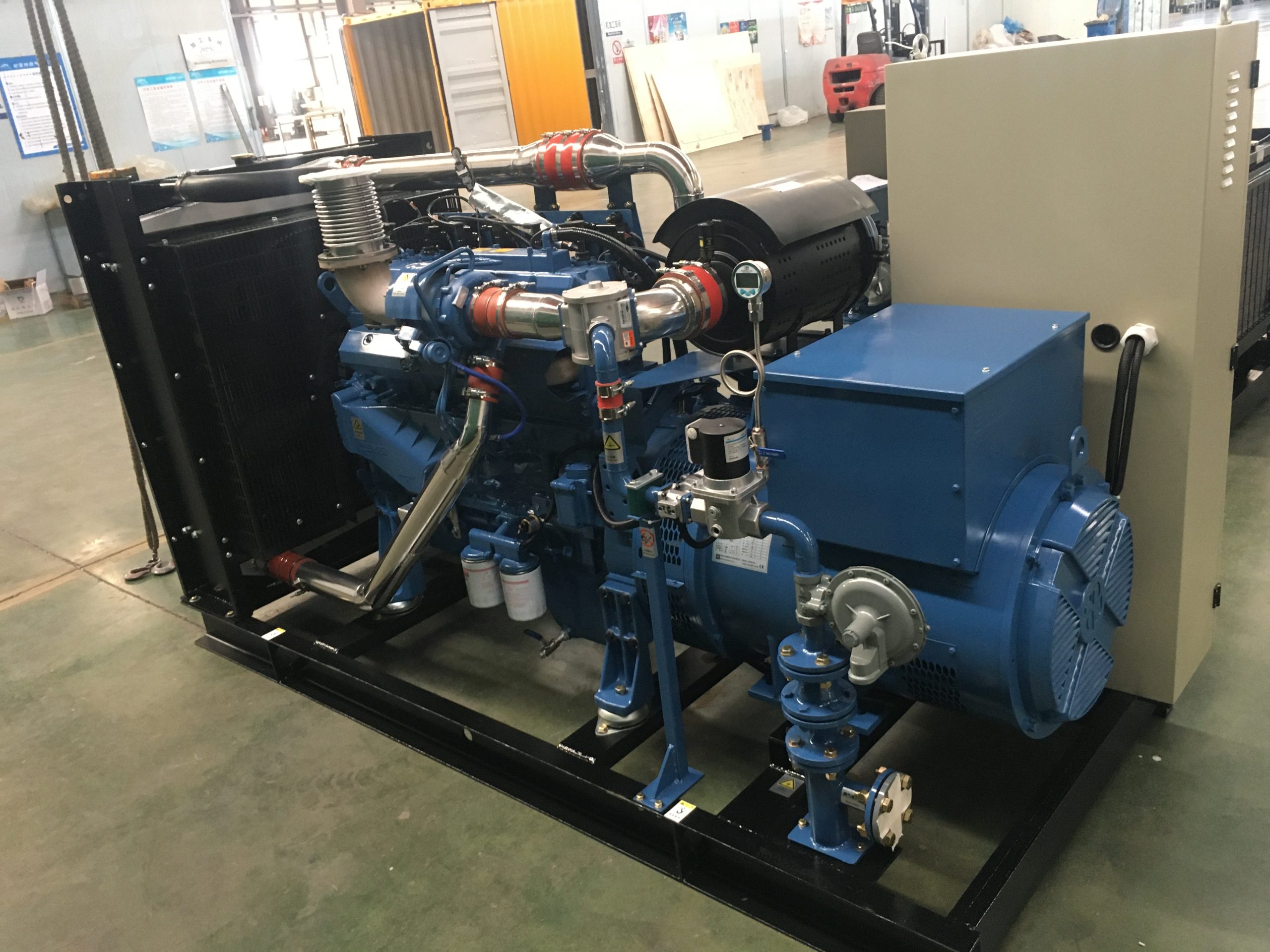

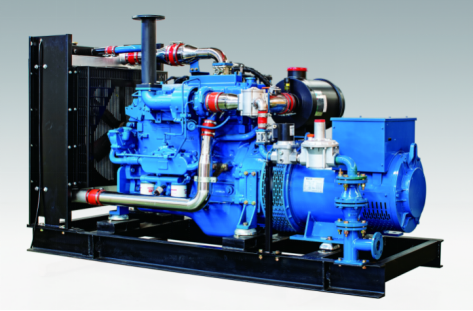

100kW Natural Gas Generator
100 kW natural gas generator for reliable, efficient power generation.
RATED POWER
100 kw
TECHNICAL DATA
Technical Specifications
Detailed technical specifications for the generator, gas engine and alternator.
Generator
Electrical Specifications
Rated Power
100kW
Continuous Power(COP)
80-90kW@25℃
Rated Frequency
50Hz
Rated Power Factor
0.8(Lag)
Rated Voltage
380V
Rated Speed
1500r/min
Oil Consumption
≤0.4 g/kWh
Starting Mode
Electrical starter
Cooling Mode
Vertical radiator
Stabilized Voltage Regulation
≤±2.5%
Voltage Fluctuation
±1%
Instantaneous Voltage Regulation
-15%～+20%
Voltage Recovery Time
≤6s
Stabilized Frequency Regulation
0～5%(adjustable)
Frequency Fluctuation
0.50%
Instantaneous Frequency Regulation
-10%～+10%
Frequency Recovery Time
≤7s
Overall Dimensions
2520*1000*1375
Weight with container
2400KGS
Gas Engine
Engine Specifications
Fuel
Natural gas
Type
In-line, 4-stroke, electric control ignition, water cooled, pre-mixed lean burn, turbocharged and intercooled
No. of Cylinder & Cylinder Arrangement
Six cylinder inline
Bore*Stroke
112mm*132mm
Total Displacement
10.338L
Rated Speed
1,500r/min
Rated Power
120kW
Fuel Consumption(150kw)
≤28.6Nm3/h
Lub-Oil Consumption
≤0.4 g/kW·h
Lubrication Method
Pressure and splash lubrication
Starting Method
Electrical starter
Direction Of Rotation
Counter-clockwise(facing to flywheel)
Alternator
Alternator Specifications
Rated Power
100kW
Rated Voltage
380V
Rated Frequency
50Hz
Power Factor
0.8(lag)
Rated Speed
1500r/min
Connection Mode
Y
Insulation Grade
F
Environment Temperature
-20℃～30℃
Altitude
≤1000m
Protection Level
IP23
Ventilation mode
Self ventilation(IC01)
100 KW
NATURAL GAS GENERATOR
